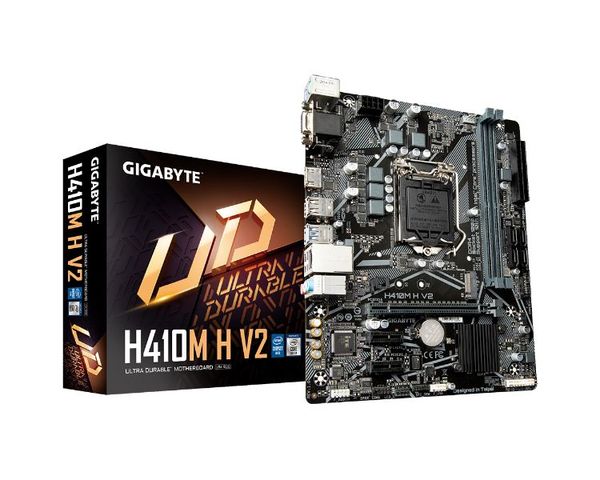

Gigabyte H410M-H V2 - Placa base

Intel ® H470 Ultra Durable con la placa base GIGABYTE 8118 juegos LAN, Anti-Azufre Resistencia, ventilador inteligente 5

Características principales:

Admite el procesador Intel® Core ™ de décima generación

DDR4 sin búfer sin ECC de doble canal, 2 DIMM

Audio de 8-channel HD con condensadores de audio de alta calidad

LAN para juegos 8118 exclusiva de GIGABYTE con gestión de ancho de banda

Smart Fan 5 con sensores de múltiple temperatura y cabezales de ventilación híbrida con FAN STOP

Centro de aplicaciones de GIGABYTE, uso simple y fácil

Diseño de resistencias anti-azufre

Especificaciones Gigabyte H410M-H:

Intel® Ultra Durable Motherboard with GbE LAN, Anti-Sulfur Resistor, Smart Fan 5

• Supports 10th Gen Intel® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• 8-Channel HD Audio with High Quality Audio Capacitors
• NVMe PCIe Gen3 x4 2280 M.2 Connector
• GbE LAN with Bandwidth Management
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• GIGABYTE APP Center, Simple and Easy Use
• Anti-Sulfur Resistors Design

CPU

LGA1200 package:

1. 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors / Intel® Celeron® processors
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

Intel® Q470 Express Chipset

Memory

1. 10th Generation Intel® Core™ i9/i7 Processors:
   - Support for DDR4 2933/2666/2400/2133 MT/s memory modules
2. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® Processors:
   - Support for DDR4 2666/2400/2133 MT/s memory modules
3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules
   (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

* The D-Sub port is only available with the 10th Generation processors.

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Gigabit Ethernet Chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots

CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Storage Interface

Chipset

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

4 x SATA 6Gb/s connectors

RAID 0 and RAID 1 support for NVMe SSD storage devices

* Supported with an additional PCIe to M.2 NVMe SSD adapter card.

RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices

USB

Chipset:

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x RGB LED strip header

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)

1 x serial port header

1 x Clear CMOS jumper

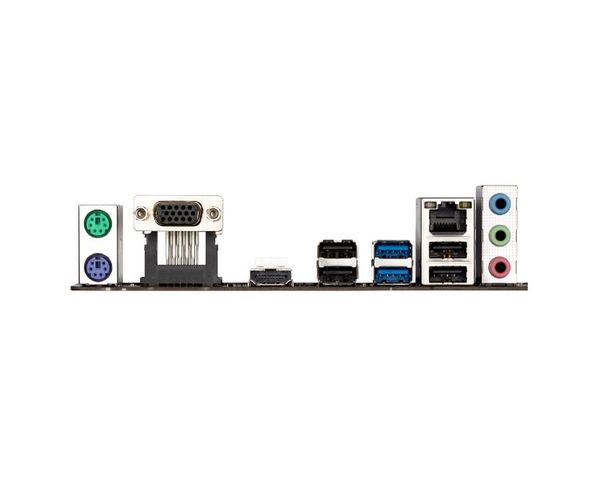

Back Panel Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

1 x HDMI port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 22.6cm x 18.5cm

Puedes obtener más información en la WEB del fabricante.

Compra Gigabyte H410M-H V2 barato en antarti.com . Tu tienda de informática online de confianza. Los mejores precios. Si lo encuentras más barato en otro lugar, por favor indícanoslo aquí.

Información adicional:

Garantía 3 años
